Product Details

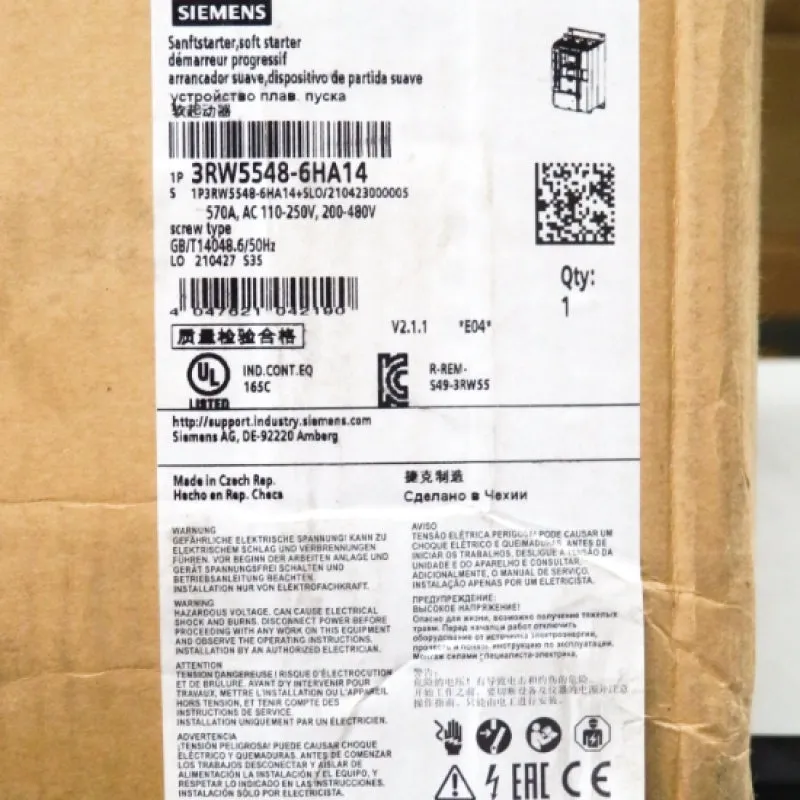

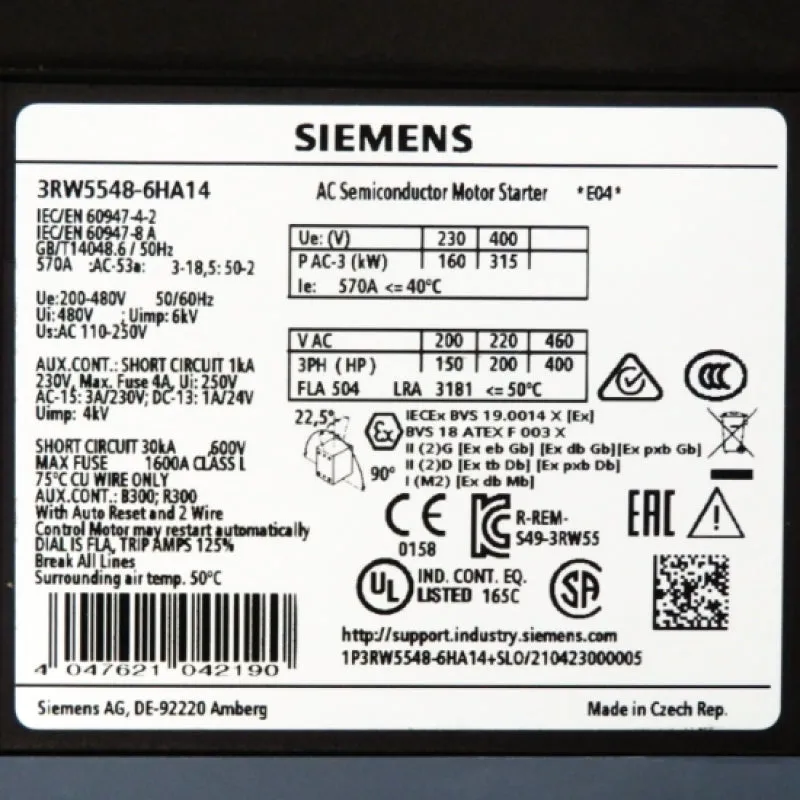

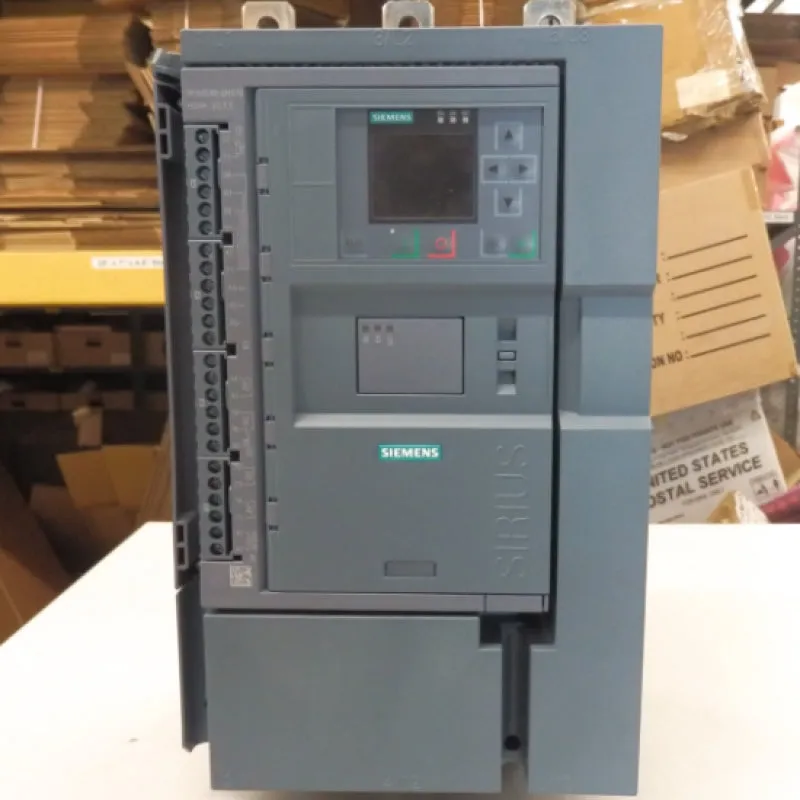

＋This is a Siemens Sirius 200-480V 570A Soft Starter. Its part number is 3RW5548-6HA14. This item comes as pictured with no additional accessories.
Specifications:
- Manufacture: Siemens
- Part Number: 3RW5548-6HA14
- starting voltage [%]: 20 ... 100 %
- stopping voltage [%]: 50 %; non-adjustable
- start-up ramp time of soft starter: 0 ... 360 s
- ramp-down time of soft starter: 0 ... 360 s
- start torque [%]: 10 ... 100 %
- stopping torque [%]: 10 ... 100 %
- torque limitation [%]: 20 ... 200 %
- current limiting value [%] adjustable: 125 ... 800 %
- breakaway voltage [%] adjustable: 40 ... 100 %
- breakaway time adjustable: 0 ... 2 s
- number of parameter sets: 3
- accuracy class: 5 (based on IEC 61557-12)
- certificate of suitability CE marking: Yes
- certificate of suitability UL approval: Yes
- certificate of suitability CSA approval: Yes
- certificate of suitability HMI-High Feature: Yes
- product feature integrated bypass contact system: Yes
- number of controlled phases: 3
- current unbalance limiting value [%]: 10 ... 60 %
- ground-fault monitoring limiting value [%]: 10 ... 95 %
- buffering time in the event of power failure for main current circuit: 100 ms
- buffering time in the event of power failure for control circuit: 100 ms
- idle time adjustable: 0 ... 255 s
- insulation voltage rated value: 480 V
- degree of pollution: 3, acc. to IEC 60947-4-2
- impulse voltage rated value: 6 kV
- blocking voltage of the thyristor maximum: 1 400 V
- service factor: 1.15
- surge voltage resistance rated value: 6 kV
- product function ramp-up (soft starting):
- product function ramp-down (soft stop):
- product function breakaway pulse:
- product function adjustable current limitation:
- product function creep speed in both directions of rotation:
- product function pump ramp down: Yes
- product function DC braking: Yes
- product function motor heating: Yes
- product function slave pointer function: Yes
- product function trace function: Yes
- product function intrinsic device protection: Yes
- product function motor overload protection: Yes Full motor protection (thermistor motor protection and electronic motor overload protection) / When using the motor overload protection according to ATEX, an upstream contactor is required in inside-delta circuit.
- product function evaluation of thermistor motor protection: Yes; Type A PTC or Klixon / Thermoclick
- product function inside-delta circuit: Yes
- product function auto-RESET: Yes
- product function manual RESET: Yes
- product function remote reset: Yes
- product function communication function: Yes
- product function operating measured value display: Yes
- product function event list: Yes
- product function error logbook: Yes
- product function via software parameterizable: Yes
- product function via software configurable: Yes
- product function screw terminal: Yes
- product function spring-loaded terminal: Yes
- product function PROFIenergy: Yes; in connection with the PROFINET Standard and PROFINET High-Feature communication modules
- product function firmware update: Yes
- product function removable terminal for control circuit: Yes
- product function voltage ramp: Yes
- product function torque control: Yes
